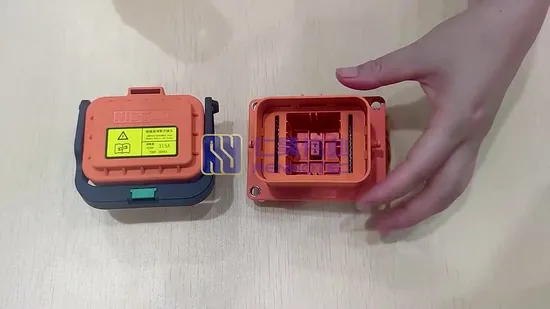

Standard Type Msd Plug with Fuse 630A Servicing Phev System Manual Service Disconnect and Front Mount Receptacle
- Overview
- Product Description
- Product Parameters
- How to Order
- Packaging & Shipping
Basic Info.
| Model NO. | 630A MSD |
| Application | Transmission of Electrical Signals |
| Character | High Temperature Resistance |
| Species | Plug |
| Production Process | Ceramic |
| Shape | Square |
| Interface Type | DC/DC |
| Certification | BS, UL |
| Brand | Renhotec |
| Transport Package | Cartons |
| Specification | 20*18*10 |
| Trademark | Renhotec |
| Origin | China |
| HS Code | 8536909000 |
| Production Capacity | 10000/Year |
Product Description
- PDU -Battery -Motor -Motor Controller
Excellent Electrical Insulation
Secondary buckle
Various Wire Diameter Application
Multi Misplug-proof and Key Position Design
Products Benefits
Touch Proof 360°Rotating Plug Compactrobust Design Various Termination Options Three Color are available Quick Lock and Press-to- Release Design
Products Feature
Product Description
Full Series HVIL Series Connector
All types of High Voltage Connector from OEM Manufacturer in China
| HVIL Series | |
| Current | 23A,35 / 50 ,100 / 150A / 180A / 200A / 250A / 300A / 400A / 500A |
| Gender | Plug / Socket |
| Number of Positions | 1 Pin / 2Pin / 3Pin |
| Orientation | Straight / Right Angle |
| Body Material | Metal / Plastic |
| Renhotec All HVIL Connectors | ||||
| Products Series | Rated Current | Position | Shell materials | Orientation |
| HVIL23 | 23A Max | 2 | PA66 | Straight |
| 3 | PA66 | Straight | ||
| HVIL35 | 35A Max | 2 | Zinc Alloy | Straight |
| 3 | Zinc Alloy | Straight | ||
| HVIL50 | 50A Max | 2 | PA66 | Straight |
| HVIL125 | 125A Max | 1 | Zinc Alloy | Straight |
| 2 | PA66 | Straight/ Right Angle | ||
| HVIL150 | 150A Max | 2 | PA66 | Straight |
| HVIL200 | 200A Max | 1 | Zinc Alloy | Straight/ Right Angle |
| 2 | PA66 | Straight/ Right Angle | ||
| HVIL250 | 250A Max | 1 | Zinc Alloy | Straight/ Right Angle |
| HVIL400 | 400A Max | 1 | Zinc Alloy | Straight/ Right Angle |
| HVIL500 | 500A Max | 1 | Zinc Alloy | Straight/ Right Angle |
| Electrical Performance | Rated Voltage 960V AC/1000V DC Rated Current 16A,35A,50A,125A,150A,200A,250A,400A,500A Withstand Voltage 3000V AC Insulation Resistance ≥500MΩ Cable Gauge 2.5-150m2 | ||
| Mechanical Performance | Connection Type Terminal machine Mating Cycles >100 Shielding 360 Salt Spray MAX 96h Flammability Rating UL94 V-0 Positions 1/2/3pin | ||
| Environmental Performance | IP Degree IP67 IP6K9K(Mated) Operating Temperature -40ºC~125ºC | ||
How to Order
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mas
