Product Description

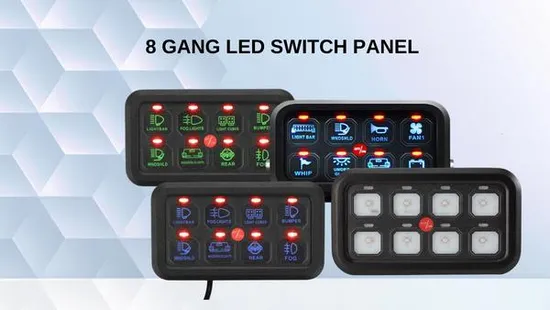

8 Gang Switch Panel Electronic Relay System with Circuit Control Box Waterproof Fuse Relay Box Wiring Harness Label Stickers for Car Truck Marine Boat ATV UTV

• UNIVERSAL FIT - Adopting IBGT (Insulated Gate Bipolar Transistor) technology instead of others' bulky relay design, our universal switch control relay system is space saving and perfect fit for all 12V/24V DC power application such as car, truck, off-road, ATV/UTV, boat, marine etc.
• OVERVIEW - 8 gang switch panel allows you to control 8 set of LED lights or devices with the push of a button. With 6 circuits rated at 40A each, can powered all types of 12V/24V accessories. Includes 24 reusable switch legend options, you can customize the panel to specific accessory set up. With high stability, strong anti-vibration and anti-interference ability, it won't be affected by the shaking environment.
• CLEAN & EASY - Plug and play, easy to install, looks super clean in the cab and under the hood. This is a professional quality power distribution system and it designed for use in any vehicle, allowing you to add professional control for your electronic devices in an easy-to-install system that doesn't force you to splice into factory wiring.
• SAFETY & DURABILITY - No need to worry about over-current or over-temperature conditions (even 200° max). Come with high-temp and abrasion resistant wiring harness, relays, fuses, and temperature protection switch, if the internal temperature crosses 100 °C, the circuits will shut down and attempt to reset.
• ALL IN ONE - This elegant package contains everything you need for installation and use. No need to buy extra parts. 8 Gang Switch Panel + 50pcs Self-Adhesive Label + 3 Sets of Mounting Brackets + Switch Control Box + Screw Tapes + Strapping Tapes + Wiring Harness + Installation Instructions.

Product description

8 Button Multiple Controller allows you to control 8 auxiliary lights or electrical devices with the push of 1 button.FeatureSafety - Collect all the wiring into the switch panel which avoiding short circuit.Easy to Push - Green LED back light button makes it easier for push.Customized - Contains 45 laser strapped labels sticker and 5 DIY sticker.Specifications Input Voltage - 12-24 Volt DC Maximum Current - 60 Amp Maximum Power - 600 Watts at 12 Volt / 12,000 Watts at 24 Volt16 position terminal block for 8 accessory attachments Plug-and-Play system allowing you to connect 8 devices to 1 of the 8 interior button without messy


Dimension

Panel: 4.5 x 2.59 inch
Circuit Box: 7.4 x 4.72 x 1.33 inch

Attention
MAKE SURE ALL THE CONNECTIONS ARE CORRECT BEFORE TURN ON THE POWER

ConnectionConnect the RED cable to the Width Lamp
Connect the White cable to momentary push button to adjust brightness

Package Contains
(1) 8 Button Switch Panel
(1) Circuit Control Box
(1) 60 Amp Circuit Breaker
(1) Wiring Harness
(1) Mounting Bracket Set
(6) Back-up Fuse Replacement
(50) Switch Labels
(10) Strapping Tapes
(1) Instruction
